Description

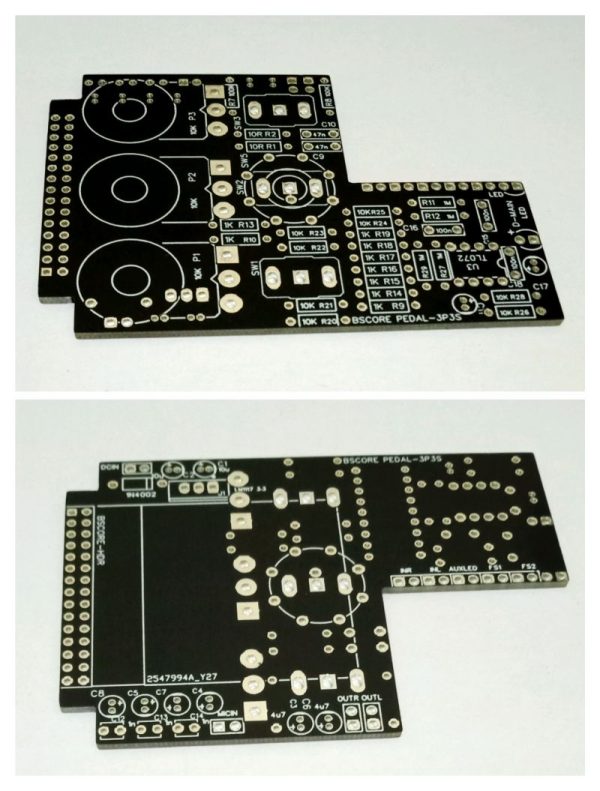

BGMP-2 PCB is a model-2 variation of Blackstomp core generic production model. Featured with 3 potentiometers, 3 SPDT switches or optionally 2 SPDT + 1P8T switches. Tested with BSCORE and BWE-VO3 VOCODER module.
SPECIFICATION
- >> Material: FR4-Standard Tg 130-140C
- >> PCB thickness: 1.6 mm
- >> PCB size: 85.7 mm* 59.7 mm
- >> Appearance quality: IPC Class 2 Standard
- >> Surface finish: lead-free-HASL-RoHS
- >> PCB color: black
- >> Silkscreen: white
SCHEMATIC DIAGRAM
LAYOUT
