Description

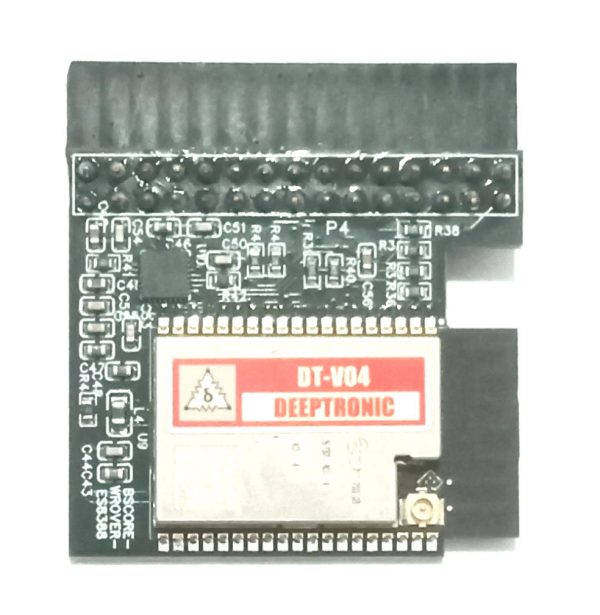

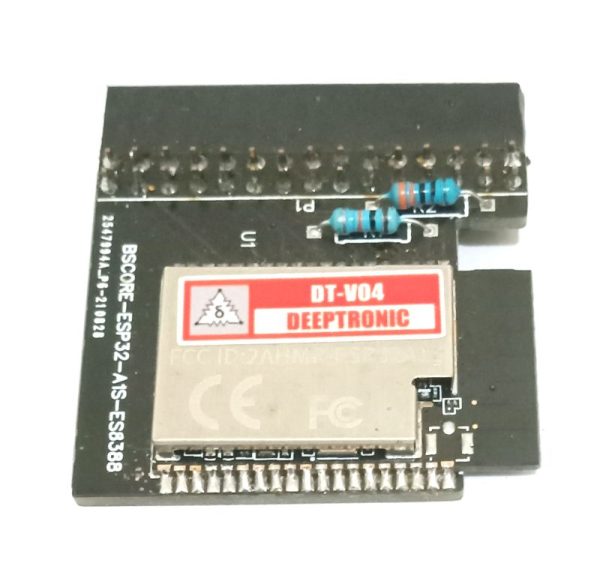

DT-VO4 is a vocoder effect module designed for guitar effect pedal application, module based on digital simulation of analog channel vocoder. To build a vocoder pedal using this module, get the schematic diagram, parts list, and the link to PCB gerber files from the build document/application note.
FEATURES
- >> True bypass
- >> 1 Vrms (2.8 Vpp) standard input range
- >> 18-channel filters on both analyzer and synthesizer
- >> Triple operation modes: talkbox, classic, and unison
- >> Gender control for classic mode
- >> Resonance frequency control for talkbox mode
- >> Unison width control for unison mode
- >> Knob’s center-position calibration
- >> Configurable microphone gain range and noise gate level for wide variety of dynamic microphone pickup
DOCUMENTS
VO4 VOCODER PEDAL DEMO VIDEO
